replace 19,0-28,0 by 12 x 5,3mm

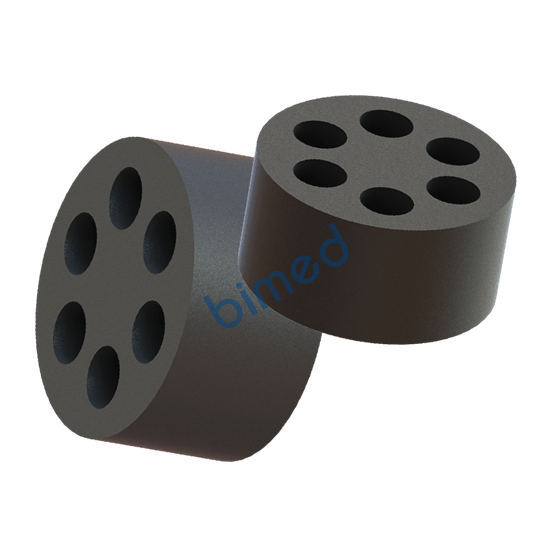

Multihole seals

• To use a number of small cables in one cable gland.
• High quality strain relief and sealing, reliable performance for standard industrial applications.

Products specifications

Material		CR (Chloroprene)
		NBR
		Silicone
		EPDM
Replaced Standard	Seal #1 Ø min-max	19,0 - 28,0 mm
	Seal #2 Ø min-max	16,0 - 23,0 mm
No. of Cores		12
Core Ø (e)		5,3 mm
Outer Ø (D)		33,4 mm
Height (h)		17,0 mm
Part Number	CR , black	MMS-060AC
	NBR , black	MMS-060AN
	Silicone , red	-
	EPDM , black	MMS-060AE
